Acknowledgements

  • PlantUML was used to create UML diagrams.
  • Existing AB3 UML diagrams were modified to suit CareFlow’s software architecture.

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

:bulb: Tip: The .puml files used to create diagrams in this document can be found in the diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

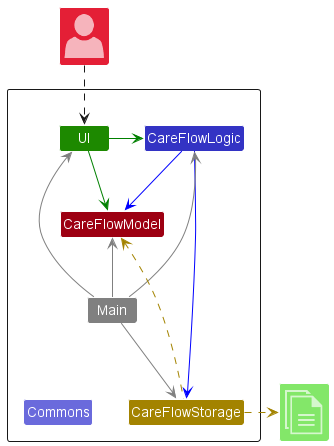

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

  • At app launch: Initializes the components in the correct sequence, and connects them up with each other.
  • At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

How the architecture components interact with each other

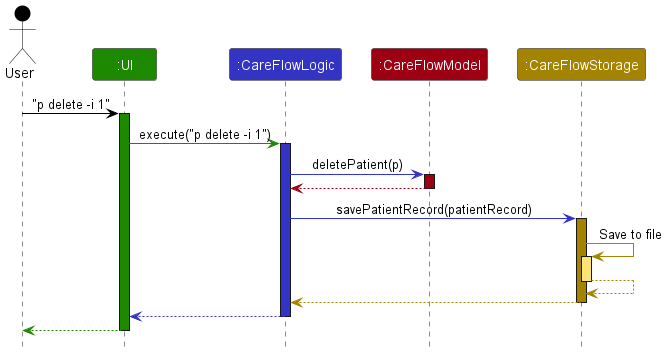

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command p delete -i 1.

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the Component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

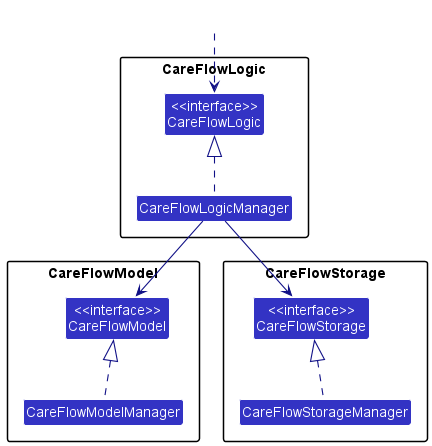

For example, the CareFLowLogic component defines its API in the CareFlowLogic.java interface and implements its functionality using the CareFlowLogicManager.java class which follows the CareFlowLogic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

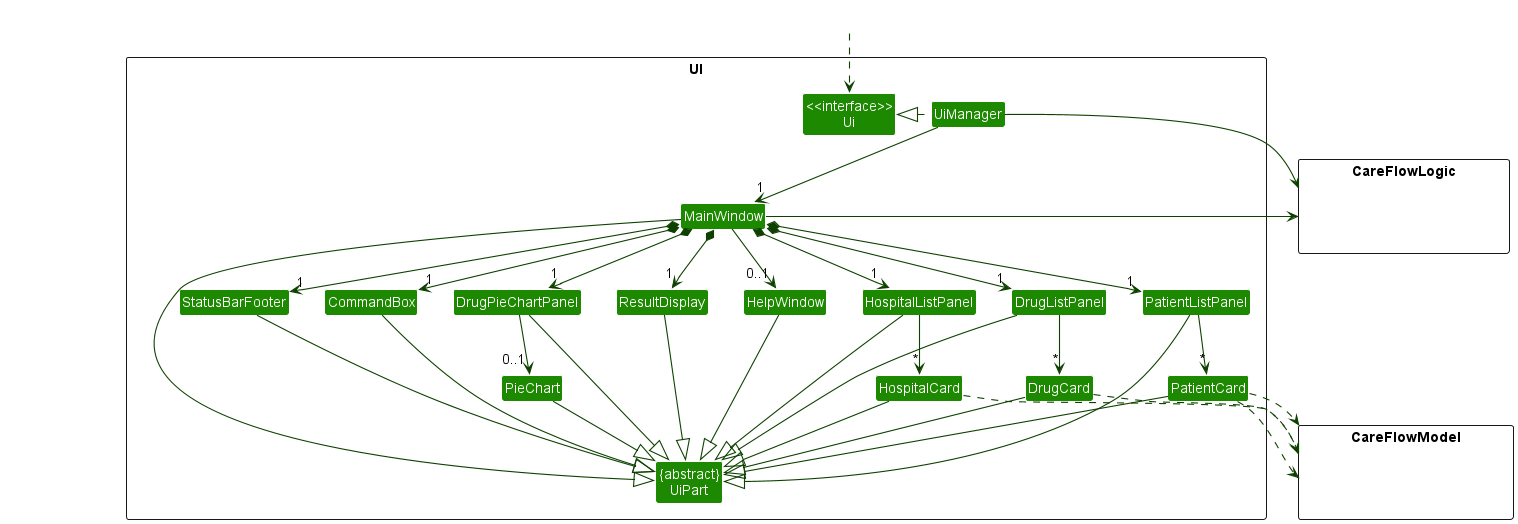

Structure of the UI Component

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PaientListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the CareFlowLogic component.
  • listens for changes to CareFlowModel data so that the UI can be updated with the modified data.
  • keeps a reference to the CareFlowLogic component, because the UI relies on the CareFlowLogic to execute commands.
  • depends on some classes in the CareFlowModel component, as it displays Patient object residing in the CareFlowModel.

Logic component

API : CareFlowLogic.java

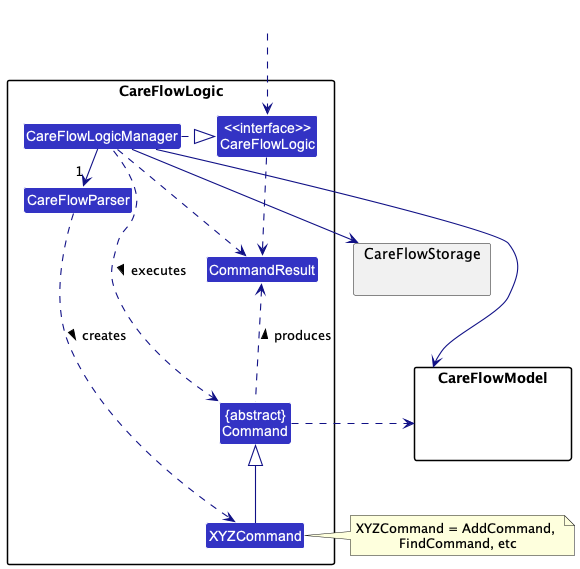

Here’s a (partial) class diagram of the CareFlowLogic component:

How the CareFlowLogic component works:

  1. When CareFlowLogic is called upon to execute a command, it uses the CareFlowParser class to parse the user command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddCommand) which is executed by the CareFlowLogicManager.
  3. The command can communicate with the CareFlowModel when it is executed (e.g. to add a patient).
  4. The result of the command execution is encapsulated as a CommandResult object which is returned from CareFlowLogic.

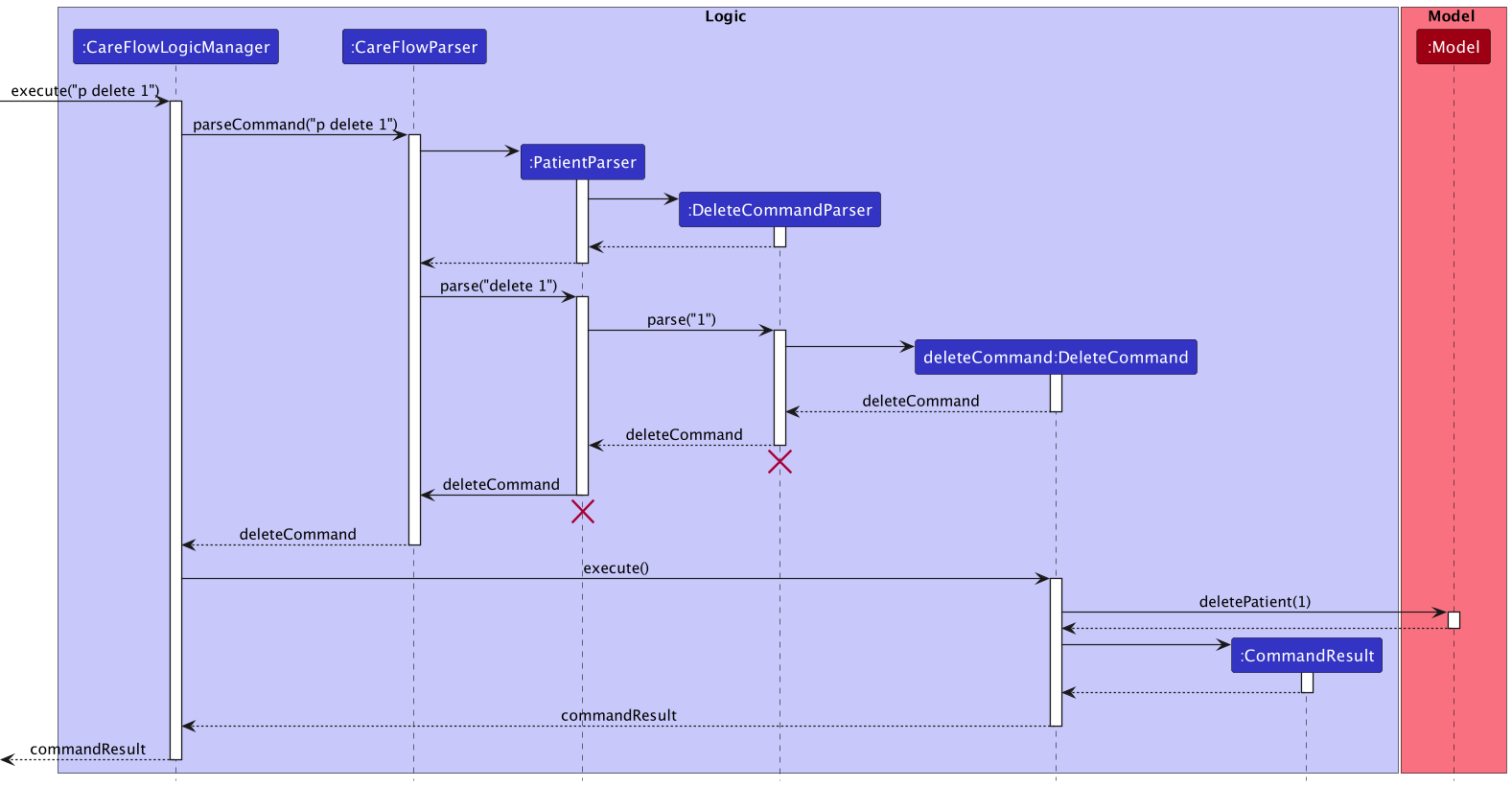

The Sequence Diagram below illustrates the interactions within the CareFlowLogic component for the execute("p delete 1") API call.

Interactions Inside the Logic Component for the `delete 1` Command

:information_source: Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Here are the other classes in CareFlowLogic (omitted from the class diagram above) that are used for parsing a user command:

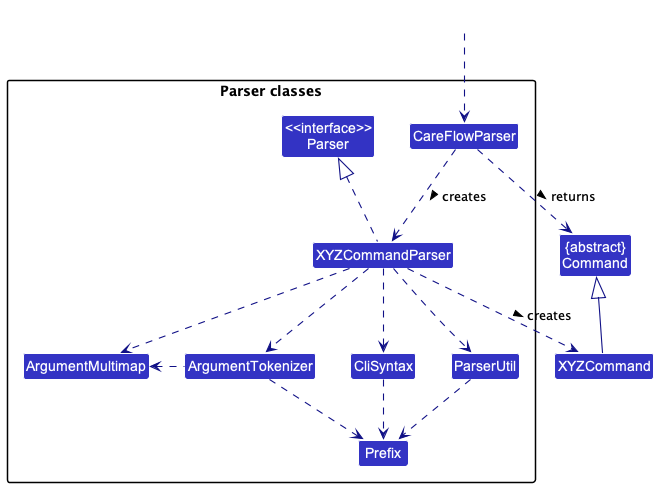

How the parsing works:

  • When called upon to parse a user command, the CareFlowParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the CareFlowParser returns as a Command object.
  • All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

The Model component,

  • stores a UserPref object that represents the user’s preferences.
  • stores a PatientRecord that represents a list of patients.
  • stores a DrugInventory that represents a list of drugs.
  • stores a HospitalRecord that represents a list of hospitals.
  • does not depend on any of the other three components (as the CareFlowModel represents data entities of the domain, they should make sense on their own without depending on other components)

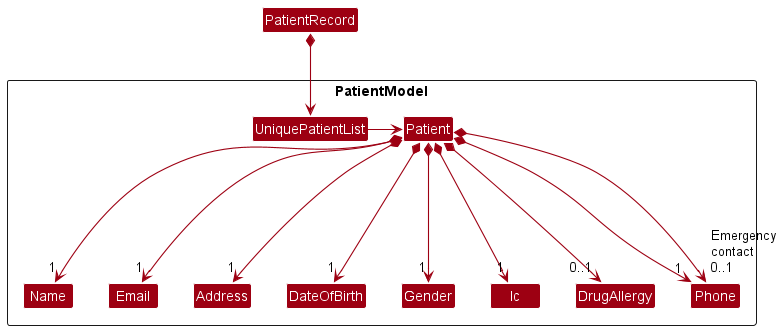

The PatientRecord stores a list of Patient objects, which each:

  • stores details of a patient: Name, Phone, Email, Address, DateOfBirth, Gender and Ic .
  • DrugAllergy might left blank if the patient does not have drug allergy.
  • Each patient may have two associated phone numbers: a required phone number, which is the patient’s own phone number, and an optional phone number, which is the phone number of the patient’s emergency contact.

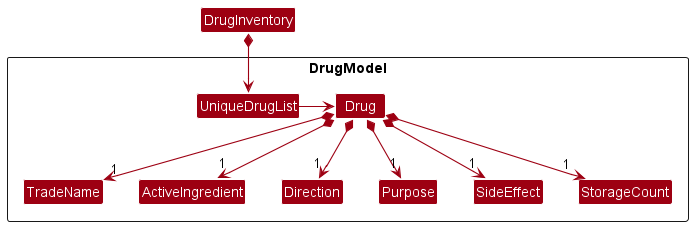

The DrugInventory stores a list of Patient objects, which each:

  • stores details of a drug: TradeName, ActiveIngredient, Direction, Purpose, SideEffect and StorageCount.

The HospitalRecord stores a list of Hospital objects, which each:

  • stores the Hospital information: Name and Phone which is the hotline of the hospital.
:information_source: Note:The hospital data is predefined and not editable by users, as it is hard-coded in our system

Storage component

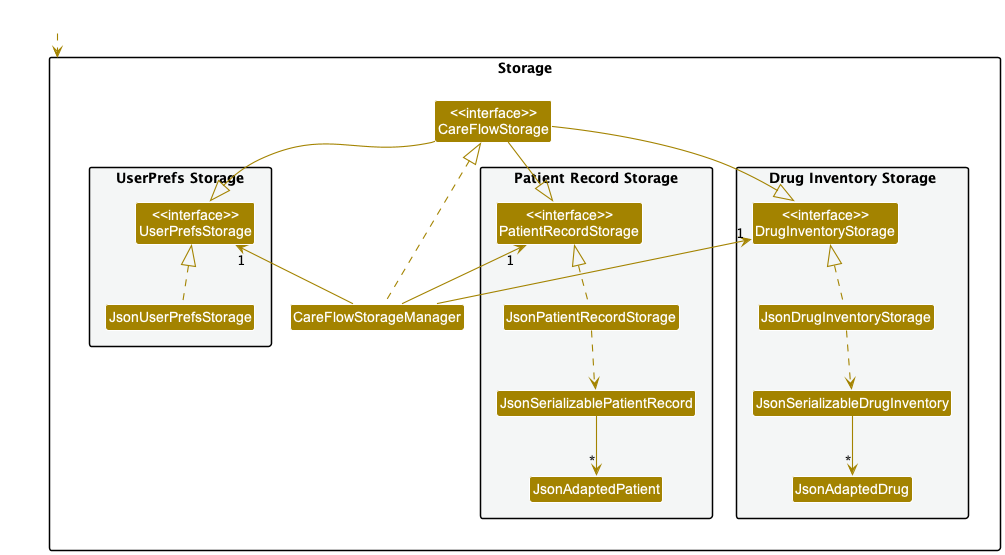

API : Storage.java

The Storage component,

  • can save both patient and drug data and user preference data in json format, and read them back into corresponding objects.
    • inherits from both PatientRecordStorage, DrugInventoryStorage and UserPrefStorage, which means it can be treated as any one of the three(if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.careflow.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Pie chart drug storage analysis feature

The pie chart displayed as part of the user interface relies on drug inventory data from CareFlowLogic, passed to the DrugPieChartPanel constructor as an ObservableList

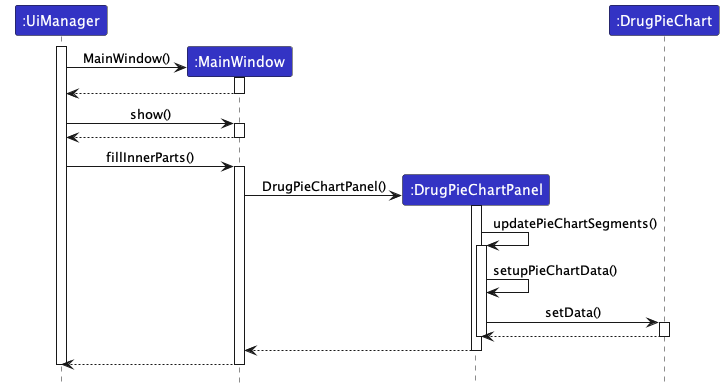

This is the sequence of component interactions that sets up data for the pie chart upon program initialisation. PieChartSequenceDiagram

Given below is an example usage sequence of steps taken by the user that triggers visual updates to the drug storage analysis pie chart, displaying the latest storage percentage calculations:

Step 1. The user launches CareFlow for the first time. Since no Drugs are stored yet, dummy Drug inventory data will be loaded.

Step 2. The user adds a new Drug by executing the command d add.

Step 3. The user updates the quantity of the added Drug by executing the command d update.

Step 4. The user deletes the previously added Drug by executing the command d delete.

Find drug by trade name feature

Users may use the d find TRADENAME command to retrieve information about a drug.

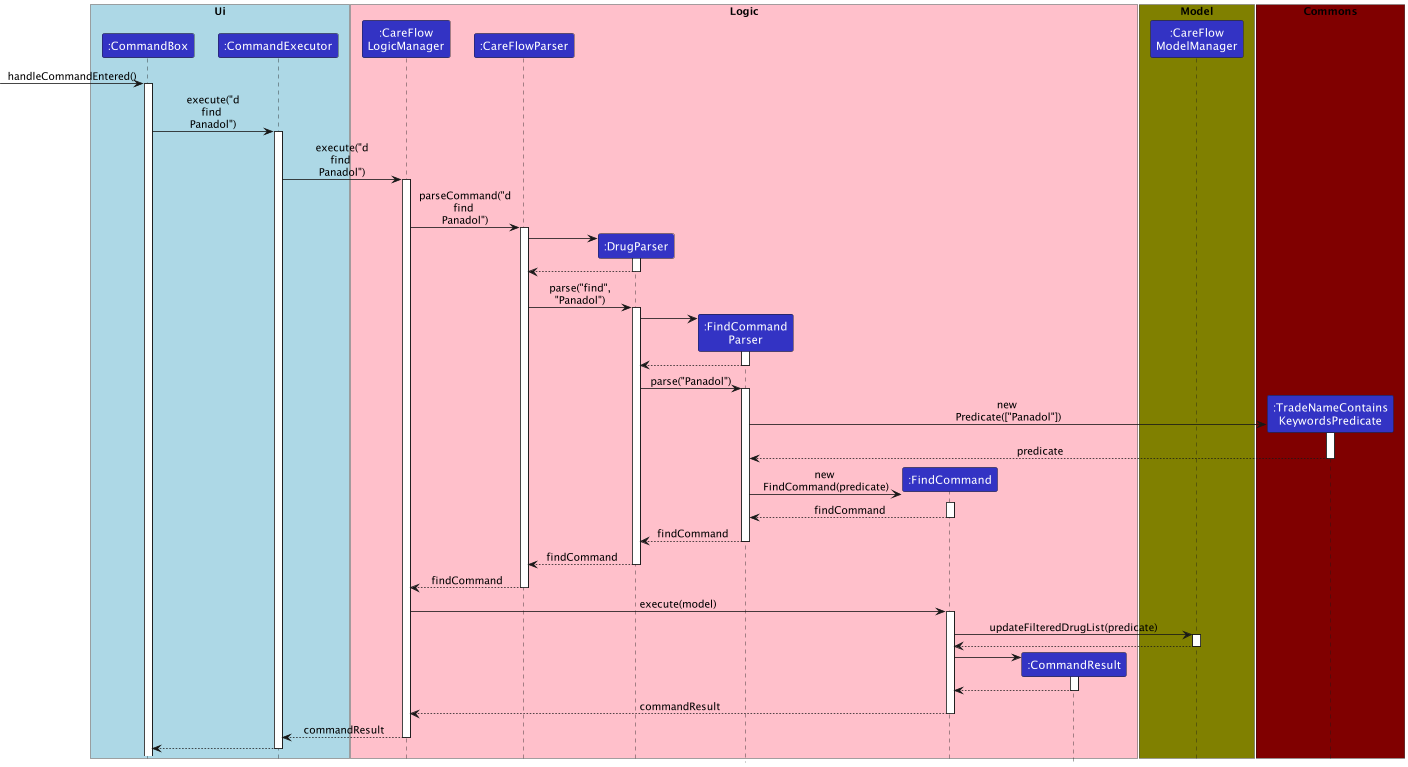

This is the sequence diagram illustrating how different components interact to execute a find command from the user. drugFindCommandSequenceDiagram

Step 1. The user enters the "d find Panadol" command. This causes the listener attached to the command box to fire, and the event handler function handleCommandEntered() is triggered.

Step 2. The handleCommandEntered() function invokes the CommandExecutor#execute method, which in turn calls the CareFlowLogicManager#execute method, delegating command execution to the Logic component.

Step 3. The CareFlowLogicManager#execute method promotes CareFlowParser to parse the command, which then recursively calls the parse method of DrugParser and FindCommandParser to parse the command step by step.

Step 4. The FindCommandParser creates a new TradeNameContainsKeywordsPredicate instance using the keyword "Panadol" and passes this instance, predicate to the FindCommand constructor. It then returns the findCommand instance back to DrugParser and CareFlowParser, eventually reaching CareFlowLogicManager.

Step 5. Upon receiving this findCommand instance, CareFlowLogicManager goes on to invokes its FindCommand#execute method, passing the CareFlowModelManager instance as the method argument

Step 6. The FindCommand#execute method uses CareFlowModelManager#updateFilteredDrugList to filter the current list of drugs using the predicate set earlier.

Step 7. The FilteredDrugList now only contains drugs whose trade name contains the keyword "Panadol".

Step 8. Upon completion of command execution, a message feedback is packaged in the commandResult instance and passed to the CommandExecutor.

Step 9. The CommandExecutor then displays the message feedback and update UI to display the filtered list of drugs.

Documentation, logging, testing, configuration, dev-ops

Appendix: Requirements

Product scope

Target user profile:

  • Receptionists, specifically targeting General Practitioner clinics, usually with fewer and regular patients.
  • Mostly desk-bound. Computers are accessible tools.
  • Able to pick up typing skills quickly and able to type fast.
  • is reasonably comfortable using CLI apps
  • has a need to manage a significant number of contacts

Value proposition:

  • Better communication between healthcare providers and patients
  • Increased efficiency in tracking patient’s health records and patiental information
  • Addresses the needs and pain points of GPs who do not have a centralized system for tracking patients and drugs/inventory
  • Increased availability of service as CareFlow is not dependent on any internet access
  • No hidden costs or subscriptions required
  • Potential to serve as a backup system if clinic systems are temporarily unable to access the internet
  • Live percentage analysis of drug inventory
  • Simple to use with no lengthy onboarding process required

    User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​
* * * A receptionist at the GP clinic Add new patients profiles use the system to track their patiental information and health records
* * * A receptionist at the GP clinic Add new drug record use the system to store drug information and track storage
* * * A receptionist at the GP clinic delete a patient remove patient data that I no longer need
* * * A receptionist at the GP clinic delete a drug by index remove data of drugs that my clinic no longer offers
* * * A receptionist at the GP clinic delete a drug by trade name remove data of drugs that my clinic no longer offers
* * * A receptionist at the GP clinic list all drugs have an overview of the inventory
* * * A receptionist at the GP clinic list all patients have an overview of all patient records
* * * A receptionist at the GP clinic find a patient by name locate details of patients without having to go through the entire list
* * * A receptionist at the GP clinic find a drug by trade name retrieve details of the drug to facilitate prescription
* * * A receptionist at the GP clinic Retrieve patients’ contact number remind patients of their upcoming appointments
* * * A receptionist at the GP clinic update patient profiles have access to the most updated version of their patiental information in terms of their contact number, address etc to facilitate our internal patient management procedure
* * * A receptionist at the GP clinic increase a drug’s storage count update inventory whenever new batches of drug arrives
* * * A receptionist at the GP clinic decrease a drug’s storage count update inventory whenever a drug is prescribed
* * * A receptionist at the GP clinic clear all drug to prevent data leakage in case the clinic goes out of business
* * * A receptionist at the GP clinic clear all patients to prevent data leakage in case the clinic goes out of business
* * A receptionist at the GP clinic sort patients by name locate a patient easily
* * A receptionist at the GP clinic archive a patient profile if the patient has not visited for a long time searching in a smaller dataset and when I distribute health information, I can omit patients in the archive to reduce spamming
* * A receptionist at the GP clinic Refer the patient to hospitals easily forward their patiental information, health record and health condition to hospitals if the patient needs more professional treatment
* * A receptionist at the GP clinic Check if a patient has any drug allergy Inform the doctor of the patient’s drug allergy and ensure the safety of the patients by avoiding prescribing them with drugs that they are allergic to
* * A receptionist at the GP clinic Update patients on crowd conditions They can avoid visiting during peak clinic capacities
* * A receptionist at the GP clinic Access all hotlines to major SG hospitals easily contact them for emergency cases
* * A receptionist at the GP clinic Add appointment dates for a patient easily tell who has upcoming appointments and sms/email them to remind them
* * A receptionist at the GP clinic Use the system to send notifications to patients who have upcoming appointments send out mass notifications with one simple click without having to text each patient individually
* * A receptionist at the GP clinic Check a patient’s past appointment records at the clinic get information about their past visits (doctor, visit frequency, drugs prescribed etc.)
* * A receptionist at the GP clinic Detect patients who have missed their appointment send them reminders to make another appointment
* * A receptionist at the GP clinic Update patients on the crowding condition upon request provide a more flexible experience at the clinic since they can decide whether or when to visit the clinic based on the crowding condition that can be easily retrieved
* * A receptionist at the GP clinic Append patient to the queue Ensure that the patients are served on a first-come-first-served basis and new patients will be lined at the end of the queue.
* * A receptionist at the GP clinic Check number of patients in the queue for doctor consultation Know the number of patients already in the queue and inform new patients about the rough waiting hours before their consultation.
* * A receptionist at the GP clinic Dequeue patients once they enter consultation room ensure that the patient who is consulting is no longer in the queue and other patients in the queue can get to see the doctor
* * A receptionist at the GP clinic Take down special request from patient: male doctor/ female doctor/ specific doctor Ensure that the patient is assigned to a doctor that they wish to visit and are comfortable with
* * A receptionist at the GP clinic Edit a calendar of patient appointments make amendment to the patient appoitment if there is a need to delete or change the date of patient appointment
* * A receptionist at the GP clinic View calendar of patient appointments be informed about the upcoming appointments in the day
* * A receptionist at the GP clinic Distribute health information / news to patients (SMS / whatsapp) let patients know their patiental health info
* * A receptionist at the GP clinic Record down the visitor who has entered the clinic Eliminate paper sign-in system
* * A receptionist at the GP clinic Track patient’s observation time at the clinic after vaccination/treatment easily track and tell when they can leave
* * A receptionist at the GP clinic Check if a drug is still available and if it needs more supply ensuer that the dispensary does not run out of supply of drugs
* * A receptionist at the GP clinic Generate pdf receipts for consultation, procedures and medication prescribed have the choice to print out upon patient requests or email it to them (go green and paperless)
* * A receptionist at the GP clinic Check if a doctor has an appointment during a period of time. Ensure that appointments will not clash
* * A receptionist at the GP clinic notify patients to enter the consultation room by using the system to send push notifications / SMS, or any external broadcast devices choose not to call out their names
* * A receptionist at the GP clinic retrieve the patient’s past vaccination records Inform the doctor and allow him or her to decide on whether to provide additional vaccines
* * A receptionist at the GP clinic Retrieve patients’ emergency contact Inform the patients’ loved ones or guardian during unexpected situations

Use cases

(For all use cases below, the System is the Careflow and the Actor is the GP receptionist, unless specified otherwise)

Use case: UC01 - Add a patient

Precondition: The GP receptionist is logged into the system

Guarantee: A new user account is created on the system with at least a name, NRIC, phone, email, address, date of birth, gender and IC

MSS

  1. User requests to add a new patient to the system.
  2. User enters patient details.
    1. The following are required information:
      • Patient name
      • Phone Number
      • Email
      • Address
      • Date of Birth
      • Gender
      • IC
    2. The following are non-required information:
      • Drug Allergy
      • Emergency contact
  3. The system creates the new user account.

  4. The system show the new created user in the patient list.

    Use case ends.

Extensions

  • 2a. If any of the required fields are not completed

    • 2a1. the user is informed of this and show the correct format for the command

      Use case resume at step 2.

  • 2b. If the patient name is already in use

    • 2b1. the user is informed that he or she must choose a different name

      Use case resume at step 2.

  • 2c. If the input field is invalid

    • 2c1. the user is informed of this, and correct format for the command is displayed.

      Use case resume at step 2.

Use case: UC02 - Delete a patient

Precondition: The GP receptionist is logged into the system

MSS

  1. User list all patients(UC03).
  2. User enters NRIC or index to delete a specific patient in the list.
  3. System deletes the patient from the system.

  4. System show the upddated patient list.

    Use case ends.

Extensions

  • 1a. The list is empty.

    Use case ends.

  • 2a. The given NRIC is invalid.

    • 2a1. System shows an error message.

      Use case resumes at step 2.

  • 2b. The given index is invalid.

    • 2b1. System shows an error message.

      Use case resumes at step 2.

Use case: UC03 - List all patients

Precondition: The GP receptionist is logged into the system

MSS

  1. User requests to list all patients.

  2. System shows a list of patients.

    Use case ends.

Use case: UC04 - Find the patients

Precondition: The GP receptionist is logged into the system

MSS

  1. User requests to find patients.
  2. User enter keyword that they want search for.

  3. System return the list of patient that contain the keyword given by the user.

    Use case ends.

Use case: UC05 - Add a drug

Precondition: The GP receptionist is logged into the system

Guarantee: A new drug entry is created on the system with

MSS

  1. User requests to add a new drug to the system.
  2. The user enters drug details.
    1. The following are the required information:
      • Trade name
      • Active ingredients
      • Direction
      • Purpose
      • Side effect
      • Storage count
  3. The system creates the new drug entry.

  4. The system show the new created drug in the drug list and the drug inventory analysis pie chart displays the updated percentages of each drug within storage.

    Use case ends.

Extensions

  • 2a. If any of the required fields are not completed

    • 2a1. the user is informed of this and show the correct format for the command.

    Use case resume at step 2.

  • 2b. If the trade name is already in use

    • 2b1. the user is informed that he or she must choose a different trade name.

      Use case resume at step 2.

  • 2c. If the input field is invalid

    • 2c1. the user is informed of this, and correct format for the command is displayed.

      Use case resume at step 2.

Use case: UC06 - Delete a drug

  • Similar to UC02 except user enters trade name or index to delete the drug

Use case: UC07 - List all drugs

  • Similar to UC03

Use case: UC08 - Find the drugs

  • Similar to UC04

Non-Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 11 or above installed.
  2. Should be able to hold up to 1000 patients without a noticeable sluggishness in performance for typical usage.
  3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
  4. Should be easy to use and navigate for the clinic receptionist. It should have a simple and intuitive interface that is easy to learn and use
  5. Should be secure and protect patient data from unauthorized access or disclosure.
  6. Should be able to accommodate growth and expansion. It should be easy to add new features and functionalities as needed.
  7. Should be easy to maintain and update through a clear and well-documented architecture, and it should be easy to troubleshoot and fix problems should they arise.

Glossary

  • Mainstream OS: Windows, Linux, Unix, OS-X
  • Private contact detail: A contact detail that is not meant to be shared with others
  • GP receptionist: General practitioners receptionist

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

  1. Initial launch

    1. Download the jar file and copy into an empty folder

    2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

  3. { more test cases …​ }

Deleting a patient record

  1. Deleting a patient record while all patients are being shown

    1. Prerequisites: List all patients using the p list command. Multiple patients in the list.

    2. Test case: p delete 1
      Expected: First patient record is deleted from the list. Details of the deleted patient shown in the status message.

    3. Test case: p delete 0
      Expected: No patient is deleted. Error details shown in the status box.

    4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

  2. { more test cases …​ }

Saving data

  1. Dealing with missing/corrupted data files

    1. {explain how to simulate a missing/corrupted file, and the expected behavior}

  2. { more test cases …​ }

Planned Enhancements

  1. h view command for viewing hospital hotline

    1. Currently the only way for the user to view the hospital detail is by clicking on the hospital tab using a mouse. We recognize that we have overlooked the need for a keyboard-only command to view hospital details, and we will make sure to include a h view command as an essential feature in our upcoming implementation.

  2. Command to switch from patient records to drug inventory or hospital hotlines and vice versa.

    1. We considered this as a good-to-have feature because we already have a p view and d view command for user to look at patient and drug record respectively, so user still able to view patient and drug record without having a mouse.

  3. Allow more than one patient to have same name

    1. Currently our system don’t allow patient to have the same name. In future implementation we might consider to allow patient to have duplicate name and identify them using NRIC or FIN.

  4. Detecting unusual user input value for phone number

    1. Need to work on phone number validation, i.e: when user input only special character for phone data field, ex: ()+-, then the system wouldn’t able to detect this. In future implementation, we consider to restrict user to input telephone numbers only for this data field.
